Systems
Core to our systems design philosophy is the integration of modular manifold designs using Sun cartridge valve technology and creative packaging concepts. The result is cost and space saving hydraulic system solutions signature to your equipment design.
Modular Manifold Technology

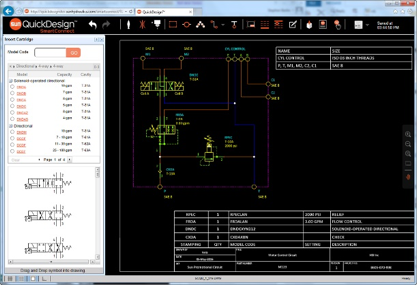

We employ modern manifold design tools such as Sun Quick Design using state of the art manifold development technology driven as you draw each unique hydraulic circuit. Bill of material and 3D models are generated in the background as well as pricing files, drill lists, and 3 & 5 axis machining drawings if you wanted to machine the manifold yourself or have Sun machine and assemble the manifold for you.
Go to www.quickdesign.sunhydraulics.com to get started.
Modular Hydraulic Power Units
Flex Power Pack
Developed over 15 years ago by combining modular manifold design with modular hydraulic power unit design. The result is a 4 frame size family of modular system solutions configured by user model code selections.

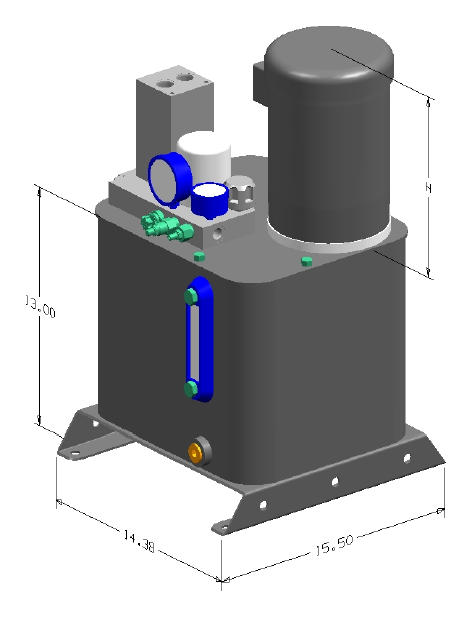

Series 10 & 15
Flex Power Pack
Fractional to 5HP and up to 3 GPM & 3000 PSI. Fixed displacement.
Series 10/15.pdf

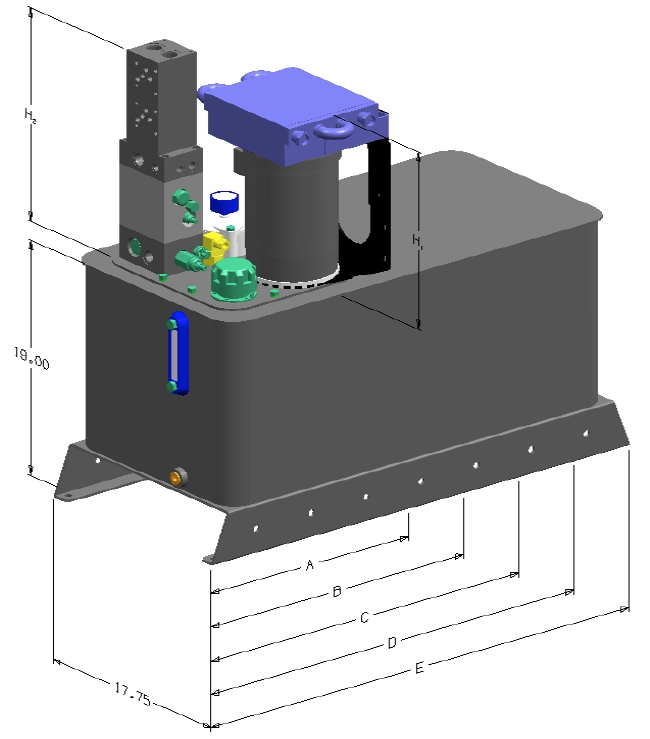

Series 20
Flex Power Pack
Fractional to 5HP and up to 12 GPM & 5000 PSI. Fixed & Variable displacement with remote proportional pressure and displacement control.
Series 20.pdf

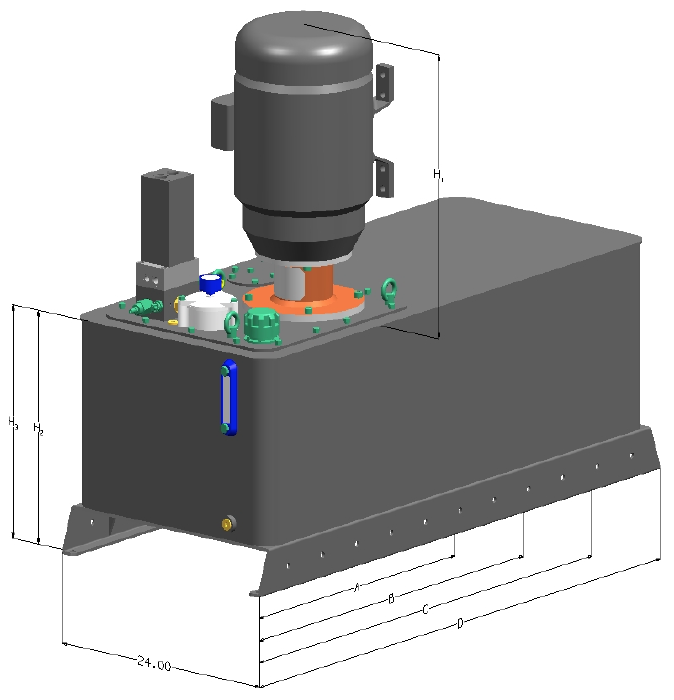

Series 25
Flex Power Pack
3 to 20HP and up to 24 GPM & 5000 PSI. Fixed & Variable displacement with remote proportional pressure and displacement control.
Series 25.pdf
Series H Horizontal
Flex Power Pack
All the flexibility of our Series 20 & 25 Flex Power Pack in a convenient horizontal configuration for enhanced serviceability and component accessibility.

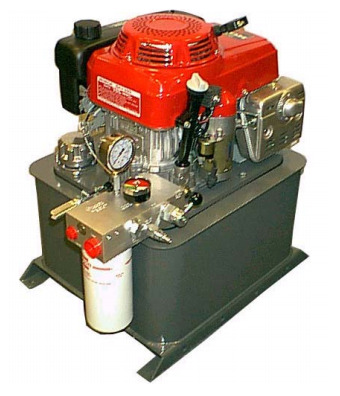

Gas Power
Flex Power Packs
Two frame sizes:
Series 17G
6 & 13HP and up to 12 GPM & 4000 PSI.
Series 17G.pdf
Series 2P
2HP (50cc 4 Stroke) and up to 1.2 GPM & 2000 PSI.
Series 2P.pdf

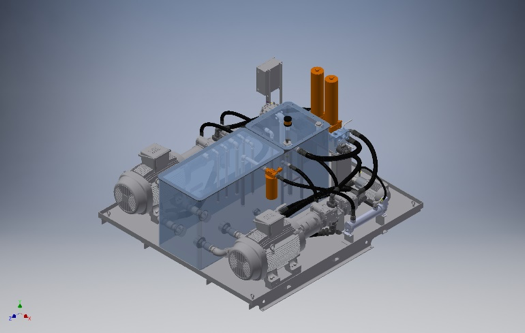

Custom Hydraulic Power Units
For all the infinite combinations of application engineered components designed into a unique custom system solution to suit your needs.
